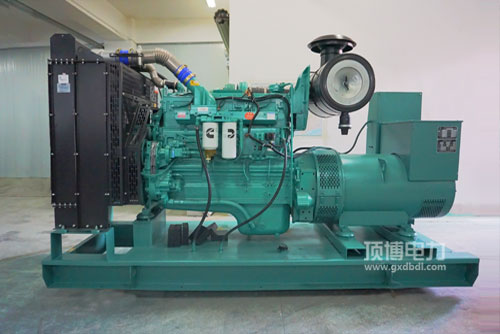

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用发起机汽油金钱性好: 优秀的汽油控住软件软件系统，独具特色的STC、ESTC 级别划分控住软件软件系统，特异开发的缸筒上边熔化室，高压力喷涌汽油，充足雾化吸入，熔化充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打火机瞬态功效优异的: 完善的打火机局部开发，协助康明斯独具特色的EFC软件系统，控住精确度就越高，反映时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用发起机升输出功率高: 整体性的设计省油的suv.外观简约时尚布局合理化，运作趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50满意全国非高架道路三、一阶段及北美洲Tier2. Tier 3排放标准法律的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必须性好， 启思想正常运作及保養保養便利性，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率位置 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯风能发电用打火机的优点和缺点：体积太小， 压缩视频变高， 排水槽气蒸汽加热，方便于起动，转移车载多媒体外接电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机主要参数	经常用工作功率(kW)Prime Power	紧急电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
